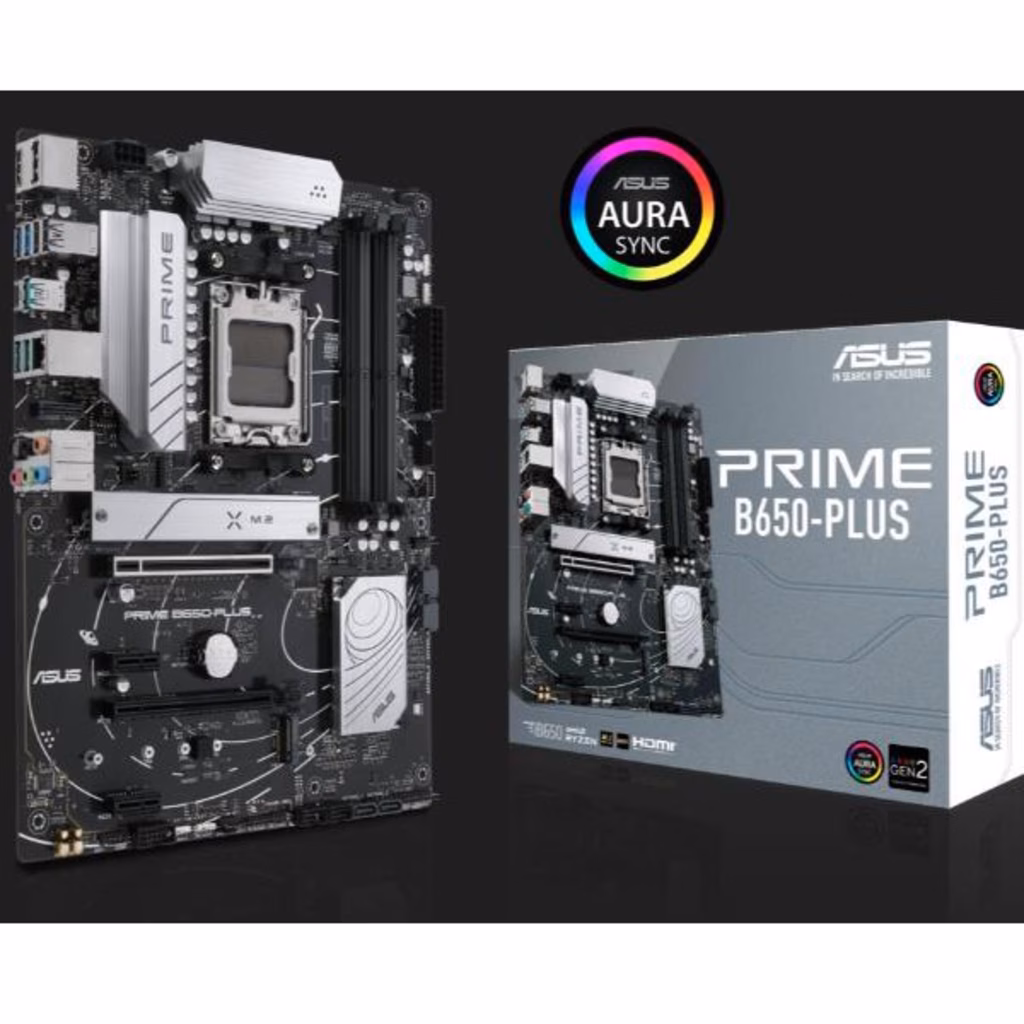

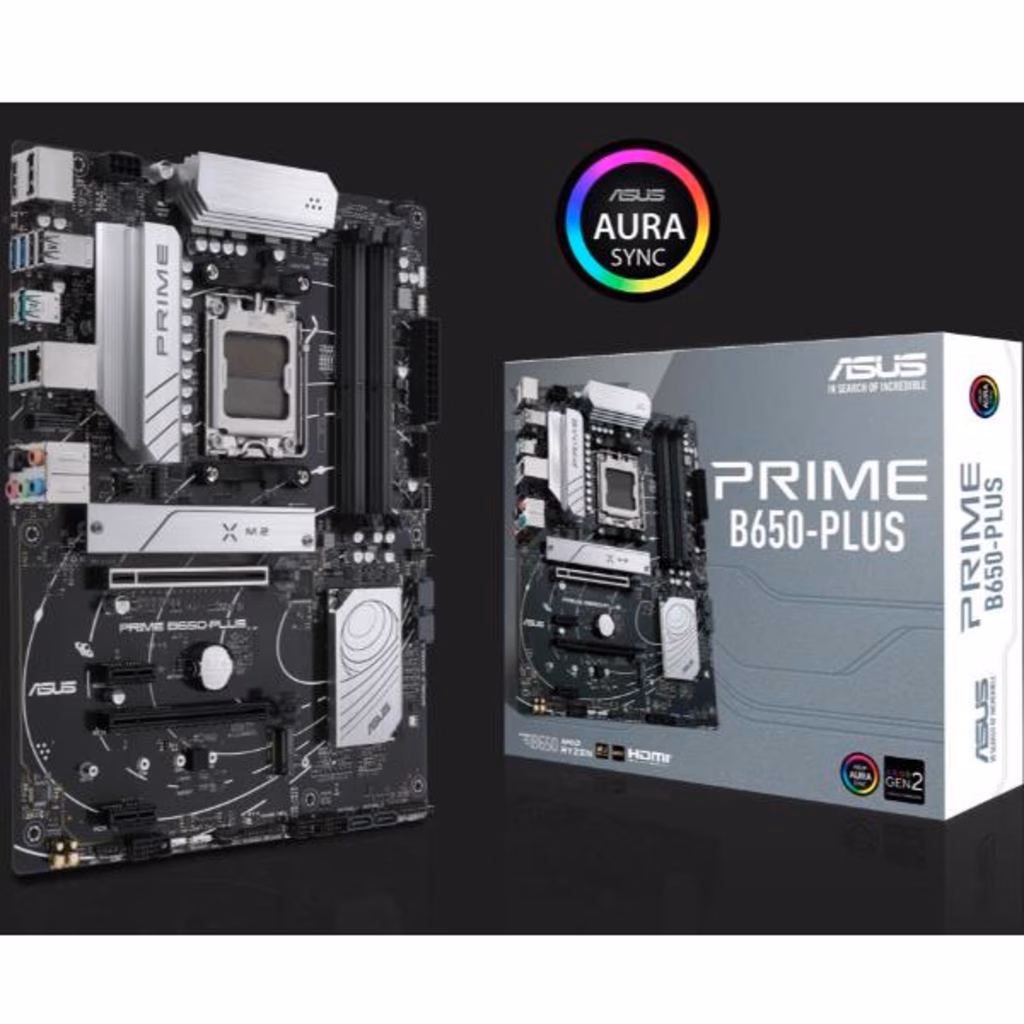

Motherboard ASUS PRIME B650-PLUS 90MB1BS0-M0EAY0

Descrizione

ASUS - PRIME B650-PLUS

CPU    AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors*
    * Refer to www.asus.com for CPU support list.
Chipset     AMD B650 Chipset
Memory     4 x DIMM, Max. 128GB, DDR5 6400+(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory*
    Dual Channel Memory Architecture
    Supports AMD EXTended Profiles for Overclocking (EXPO )
    OptiMem II
    * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information          refer to www.asus.com for memory support list.
    * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
Graphics    1 x DisplayPort**
    1 x HDMI® port***
    * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
    ** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
    *** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots     AMD Ryzen 7000 Series Desktop Processors
    1 x PCIe 4.0 x16 slot (supports x16 mode)
    AMD B650 Chipset
    1 x PCIe 4.0 x16 slot (supports x4 mode)
    2 x PCIe 4.0 x1 slots
    * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
Storage     Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
    AMD Ryzen 7000 Series Desktop Processors
    M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
    M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    AMD B650 Chipset
    4 x SATA 6Gb/s ports
    * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Ethernet    1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth®    "Vertical M.2 slot only (Key E, PCIe)*
* Wi-Fi module is sold separately."
USB     Rear USB (Total 8 ports)
    4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)
    2 x USB 3.2 Gen 1 ports (2 x Type-A)
    2 x USB 2.0 ports (2 x Type-A)
    Front USB (Total 7 ports)
    1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
    1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio    "Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
    Audio Features
    - Audio Shielding
    - Premium audio capacitors
    - Dedicated audio PCB layers
Back Panel I/O Ports    4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C®)
    2 x USB 3.2 Gen 1 ports (2 x Type-A)
    2 x USB 2.0 ports (2 x Type-A)
    1 x DisplayPort
    1 x HDMI® port
    1 x Vertical M.2 slot (Key E)
    1 x Realtek 2.5Gb Ethernet port
    5 x Audio jacks
    1 x Optical S/PDIF out port
    1 x BIOS FlashBack button
Internal I/O Connectors    Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    1 x 4-pin AIO Pump header
    3 x 4-pin Chassis Fan headers
    Power related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    Storage related
    2 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    1 x USB 3.2 Gen 1 connector (supports USB Type-C® )
    1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    Miscellaneous
    3 x Addressable Gen 2 headers
    1 x Aura RGB header
    1 x Clear CMOS header
    1 x COM Port header
    1 x Front Panel Audio header (AAFP)
    1 x SPI TPM header (14-1pin)
    1 x 20-3 pin System Panel header with Chassis intrude function
    1 x Thunderbolt (USB4®) header
Special Features     ASUS 5X PROTECTION III
    - DIGI+ VRM
    - LANGuard
    - Overvoltage Protection
    - Safeslot Core+
    - Stainless-Steel Back I/O
    ASUS Q-Design
    - Q-DIMM
    - Q-LED Core
    - Q-Slot
    ASUS Thermal Solution
    - Flexible M.2 heatsink
    - VRM heatsink design
    ASUS EZ DIY
    - BIOS FlashBack button
    - BIOS FlashBack LED
    - ProCool
    Aura Sync
    - Aura RGB header
    - Addressable Gen 2 headers
Software Features    ASUS Exclusive Software
    Armoury Crate
    - Aura Creator
    - Aura Sync
    - Fan Xpert 2+
    - Power Saving
    AI Suite 3
    - TurboV EVO
    - DIGI+ VRM
    - PC Cleaner
    ASUS CPU-Z
    Norton Anti-virus software (Free Trial version)
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
BIOS     256 Mb Flash ROM, UEFI AMI BIOS
Manageability     WOL by PME, PXE
Accessories     Cables
    2 x SATA 6Gb/s cables
    Miscellaneous
    1 x I/O Shield
    1 x M.2 Rubber Package
    1 x Screw package for M.2 SSD
    Documentation
    1 x User guide
Operating System     Windows® 11, Windows® 10 64-bit
Form Factor     ATX Form Factor
    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )


 Dimension
Product (mm)_ L*W*H    305mm*244mm*37mm
Color Box (mm)_ L*W*H    338mm*373mm*68mm
 Weight
Motherboard only    1.01 kg
Full package    1.35 kg
